Wi-Fi has emerged as one of the most popular technologies for providing Internet access, but it is also frequently exploited by malicious actors to launch various attacks. With the deployment of wireless security mechanisms like WPA2/WPA3 and the adoption of other protective strategies such as Access Point (AP) isolation, Address Resolution Protocol (ARP) protection, and rogue AP detection, off-path attackers (those unable to control the router) are finding it increasingly difficult to obtain confidential information of Wi-Fi users.
Our recent discovery in router firmware exposes a security flaw in routers’ Network Address Translation (NAT) mapping handling, which can be exploited by attackers to bypass TCP’s built-in randomization. This facilitates off-path TCP hijacking attacks, intercepting Wi-Fi TCP traffic. Our Для просмотра ссылки Войдиили Зарегистрируйся has been accepted by NDSS 2024,
Figure 1 illustrates the scenario where an attacker and a victim client are connected to the same Wi-Fi network to access Internet services (for example, consider strangers connecting to the same Wi-Fi network of a coffee shop). For the attacker to hijack the TCP connection between the victim and the server offering common services such as social media or online finance, the attacker must detect the existence of the TCP connection first. Upon confirmation, the attacker then proceeds to infer the sequence and acknowledgment numbers of the ongoing bidirectional communication.
Для просмотра ссылки Войдиили Зарегистрируйся
Figure 1 — Threat model of TCP hijacking attacks in Wi-Fi networks.
или Зарегистрируйся, enabling attackers to deduce the source ports of other client connections. In the first step, following the method illustrated in Figure 2, the attacker can deduce the source port of other clients by altering the source port numbers specified in the forged SYN and SYN/ACK packets, then observing if it can receive the SYN/ACK sent by itself until identifying the correct port used by the victim client for subsequent attacks.
Для просмотра ссылки Войдиили Зарегистрируйся
Figure 2 — Inferring the source port of the victim TCP connection.
We’ve found that most routers, for performance reasons, do not rigorously inspect the sequence numbers of TCP packets. Consequently, this introduces serious security vulnerabilities that attackers can exploit by crafting forged reset (RST) packets to maliciously clear NAT mappings in the router. In the second attack step, the attacker proceeds to steal the sequence number (SEQ) and acknowledgment number (ACK) of the normal TCP connection between the victim client and the server, as depicted in Figure 3.
Для просмотра ссылки Войдиили Зарегистрируйся
Figure 3 — Hijacking active connections.
Once the attacker has obtained the source port, sequence number, and acknowledgment number used by the client connection, it can initiate TCP connection manipulation attacks. The TCP protocol is a critical foundational protocol of the Internet, carrying important network application protocols such as SSH, HTTP, and FTP. Therefore, hijacking attacks targeting TCP can be applied across various scenarios. For instance, SSH denial of service attacks, FTP private file downloads, and HTTP cache pollution, among others. Figure 4 illustrates the effect of an attacker poisoning a victim’s HTTP webpage.
Для просмотра ссылки Войдиили Зарегистрируйся
Figure 4 — Snapshots of web poisoning.
Table 1.
Table 1 — Partially tested routers from 30 vendors.
Additionally, we conducted measurement studies on 93 real-world Wi-Fi networks and found that 75 (81%) of them were susceptible to this attack. Our case studies indicate that terminating SSH connections, downloading private files from FTP servers, and injecting false HTTP response packets on average took 17.5, 19.4, and 54.5 seconds, respectively, with success rates of 87.4%, 82.6%, and 76.1%. The detailed experimental results are shown in the paper.
[/QUOTE]
Our recent discovery in router firmware exposes a security flaw in routers’ Network Address Translation (NAT) mapping handling, which can be exploited by attackers to bypass TCP’s built-in randomization. This facilitates off-path TCP hijacking attacks, intercepting Wi-Fi TCP traffic. Our Для просмотра ссылки Войди
Figure 1 illustrates the scenario where an attacker and a victim client are connected to the same Wi-Fi network to access Internet services (for example, consider strangers connecting to the same Wi-Fi network of a coffee shop). For the attacker to hijack the TCP connection between the victim and the server offering common services such as social media or online finance, the attacker must detect the existence of the TCP connection first. Upon confirmation, the attacker then proceeds to infer the sequence and acknowledgment numbers of the ongoing bidirectional communication.
Для просмотра ссылки Войди
Figure 1 — Threat model of TCP hijacking attacks in Wi-Fi networks.
Attack steps
We’ve observed that routers often employ port preservation strategies during NAT and lack reverse path validation as required by Для просмотра ссылки ВойдиДля просмотра ссылки Войди
Figure 2 — Inferring the source port of the victim TCP connection.
We’ve found that most routers, for performance reasons, do not rigorously inspect the sequence numbers of TCP packets. Consequently, this introduces serious security vulnerabilities that attackers can exploit by crafting forged reset (RST) packets to maliciously clear NAT mappings in the router. In the second attack step, the attacker proceeds to steal the sequence number (SEQ) and acknowledgment number (ACK) of the normal TCP connection between the victim client and the server, as depicted in Figure 3.
Для просмотра ссылки Войди
Figure 3 — Hijacking active connections.
Once the attacker has obtained the source port, sequence number, and acknowledgment number used by the client connection, it can initiate TCP connection manipulation attacks. The TCP protocol is a critical foundational protocol of the Internet, carrying important network application protocols such as SSH, HTTP, and FTP. Therefore, hijacking attacks targeting TCP can be applied across various scenarios. For instance, SSH denial of service attacks, FTP private file downloads, and HTTP cache pollution, among others. Figure 4 illustrates the effect of an attacker poisoning a victim’s HTTP webpage.
Для просмотра ссылки Войди
Figure 4 — Snapshots of web poisoning.
Empirical study

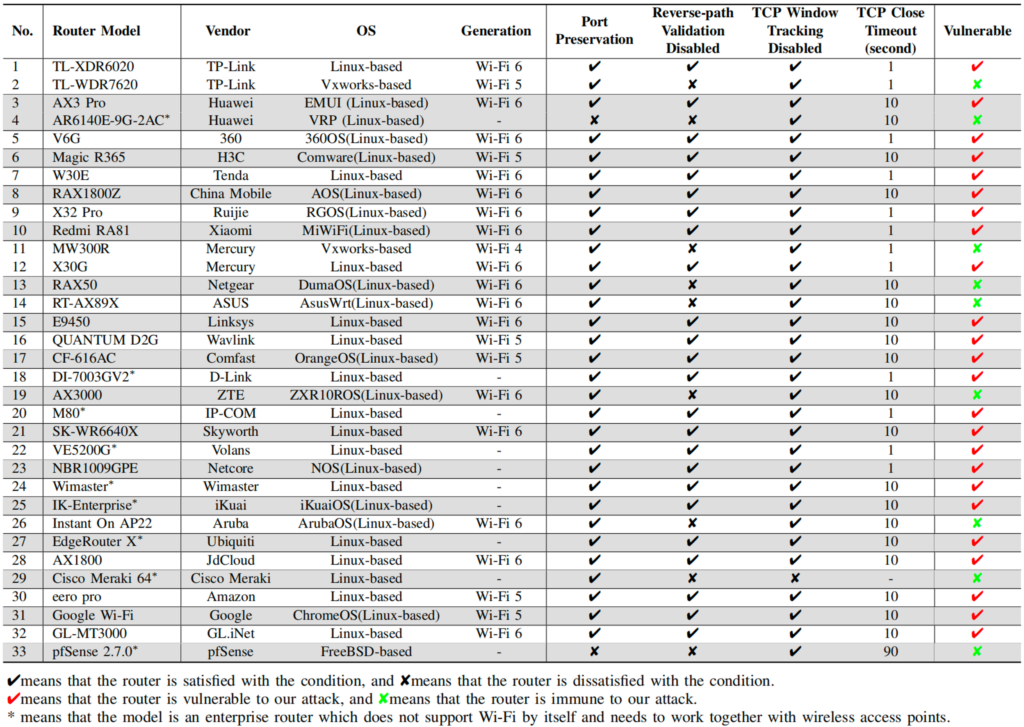

We conducted tests on 67 mainstream routers from 30 different manufacturers, including 360, Aruba, ASUS, Amazon, Cisco Meraki, China Mobile, Comfast, D-Link, GL.iNet, Google, H3C, Huawei, IP-COM, iKuai, JdCloud, Linksys, Mercury, Netgear, Netcore, Ruijie, Skyworth, Tenda, TP-Link, Ubiquiti, Volans, Wavlink, WiMaster, Xiaomi, ZTE, pfSense, and others. Among these, we found that 52 routers from 24 manufacturers were susceptible to this attack. The test results are illustrated inTable 1.
Table 1 — Partially tested routers from 30 vendors.
Additionally, we conducted measurement studies on 93 real-world Wi-Fi networks and found that 75 (81%) of them were susceptible to this attack. Our case studies indicate that terminating SSH connections, downloading private files from FTP servers, and injecting false HTTP response packets on average took 17.5, 19.4, and 54.5 seconds, respectively, with success rates of 87.4%, 82.6%, and 76.1%. The detailed experimental results are shown in the paper.
